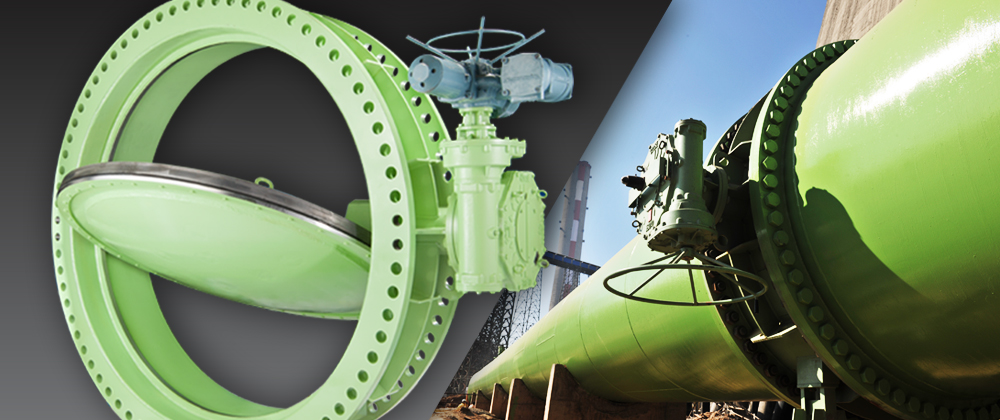

Butterfly Valve

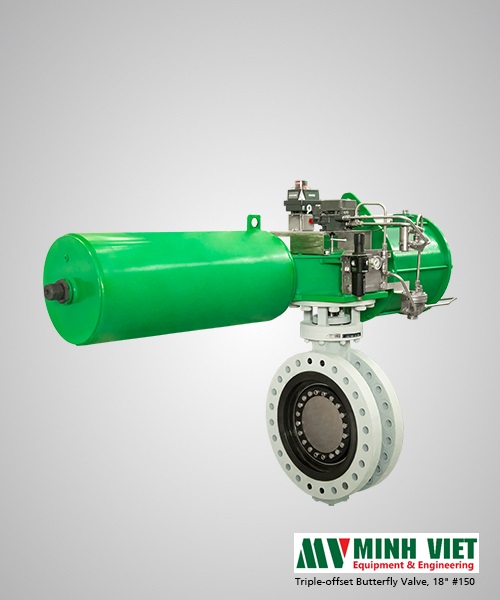

Triple Offset Butterfly Valve

Features and benefits:

  • Triple-offset Geometry minimises seat-seal contact – lower operating torque and cost of ownership
  • Compact and light weight as compared to gate valves of the same size
  • Hard faced in-situ body seat and flexible laminar seal ensure bubble tight sealing
  • Single piece Anti blow out shaft
  • Disc contour ensures minimum turbulence and pressure drop
  • Retainer bolting complies to ASME Section VIII Div 1 Appendix
  • Options: High Temperature, Cryogenic, FBE-lined, Steam-jacketed
  • Offered with Electric, Pneumatic and Hydraulic Actuators
  • In-house Tests Capabilities – Cryogenic Test, Pipe Bending Test, Vacuum Test and Fast Closure Test
Butterfly Triple Offset Valve

Size range(s):NPS 3 – 96 (DN 80 – 2400)Pressure rating:ASME Classes 150 – 600Standard connections :Lug, Double flanged (short and long) pattern, Butt weld
