PYROPRESS®
Hãng Anh chuyên van fire protection, pressure control và explosion-relief cho Oil & Gas, refinery, hazardous area. Tiêu chuẩn API 607 · ISO 10497 fire-tested. Distributor Agreement 07/11/2022.
Vì Sao EPC Việt Nam Chọn PYROPRESS Cho Life-Safety
Fire protection valve không phải commodity. Sai 1 spec = không pass fire emergency. 4 lý do PYROPRESS phù hợp cho dự án Oil & Gas + refinery + ATEX area tại Việt Nam.
Certified Fire Protection
API 607 · ISO 10497 fire-tested cho toàn bộ flameproof products. Fire emergency proven — không phải claim trên catalog mà certificate có thật từ third-party test lab.
Regulatory Compliance
Đáp ứng design code quốc tế cho O&G + refinery — API 607, ATEX Exd/Exm, EN 12266-1, FM/UL listed. Cần thiết cho dự án EPC có inspector quốc tế.
Local Supply + Spare Inventory
MVT có kho spare tại Việt Nam cho các size phổ thông. Tránh lead time 16-24 tuần từ UK direct, cứu các đơn hàng EPC bị trễ deliverable.
Integrated Fire + Pressure Solution
Fire valve + pressure control + transmitter monitoring — một vendor, không phải mix-match nhiều hãng. Đơn giản hóa procurement, warranty, integration cho EPC.
4 Dòng Sản Phẩm Fire · Pressure · Explosion
PYROPRESS chuyên life-safety: van fire-rated, pressure control, explosion relief và transmission switch cho hazardous area. Sản xuất tại Anh, certified API 607 / ISO 10497.
Flameproof Isolation Valve
Van cô lập chống cháy với fusible link tự động đóng khi nhiệt độ vượt threshold. Dùng cho O&G pipeline, industrial process, cryogenic — chặn fire lan rộng qua pipeline.
- Loại
- Ball · Gate · Butterfly fire-rated
- Fire Test Standards
- API 607 · ISO 10497
- Fusible link
- 68°C · 100°C tuỳ application
- Vật liệu
- Carbon steel · Stainless · Cryogenic alloy
- Cryogenic seat option cho LNG line (-196°C)
- Manual reset hoặc spring-return auto-close
- Position indicator + fire-rated limit switch option
Relief & Pilot-Operated Valve
Van bảo vệ áp suất hệ thống — relief valve cho overpressure, pilot-operated cho precision control, check valve fire-rated chống backflow + fire containment.
- Loại
- Relief · Pilot · Check fire-rated
- Áp suất set
- 1 – 700 bar tuỳ model
- Standards
- EN 12266-1 · API 526 · API 527
- Connection
- RF · RTJ · NPT · SW · BW
- Pilot-operated cho precision maintenance áp suất
- Fire-rated seat cho check valve — không hỏng khi cháy
- Manifold block multi-valve option
Explosion Relief Valve · ATEX
Van xả áp khi có surge áp suất nội bộ — chống rupture vessel. Bắt buộc cho hazardous area (Zone 1/21) tại refinery, chemical plant, ATEX-rated facility.
- ATEX Rating
- Exd / Exm · Group II Cat 3
- Burst pressure
- Tuỳ application (custom set)
- Vật liệu thân
- 316 SS · Hastelloy · Duplex
- Standards
- ATEX Directive · API 520/521
- Bursting disc + safety valve hybrid option
- Self-reclosing variant cho repeat-event service
- Inline mount hoặc nozzle/dome configuration

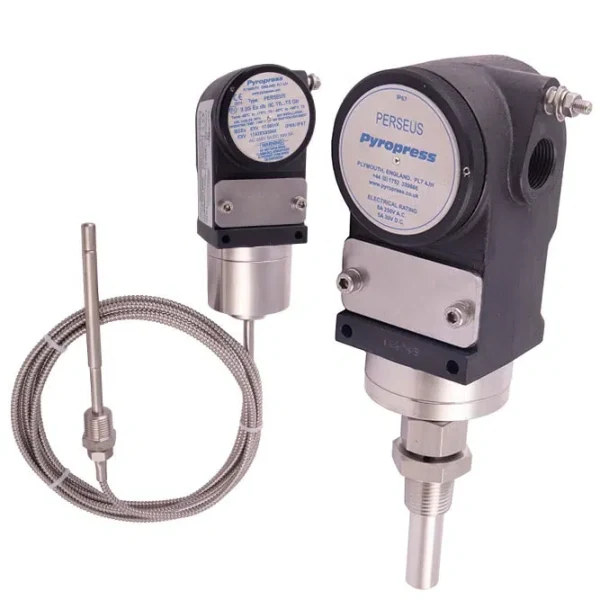

Fire-Rated Transmitter & Switch
Cảm biến + công tắc fire-rated cho position indication và pressure monitoring trong hazardous area. Tích hợp với DCS / SCADA của refinery, O&G platform.
- Output
- 4-20mA · HART · Modbus
- Hazardous Cert
- ATEX Exd · IECEx · FM/UL
- Pressure range
- 0 – 600 bar
- IP rating
- IP66/67 standard · IP68 option
- Fire-rated cable gland kèm theo
- SIL 2 / SIL 3 option cho safety-critical loop
- Calibration certificate kèm hàng
Ngành PYROPRESS Đang Phục Vụ
5 ngành chính, ưu tiên life-safety. Mọi sản phẩm đều có fire-test certificate hoặc ATEX rating tuỳ application.
Oil & Gas — Pipeline & Platform
Wellhead → export pipeline → tank farm. Fire-rated isolation và explosion-safe valve là yêu cầu thiết kế bắt buộc theo API + ASME B31.4/B31.8.
- Wellhead emergency shutdown valve (ESDV)
- Pipeline block valve fire-rated
- Tank farm fire isolation
- Import replacement vs. overseas suppliers
Refinery & Petrochemical
Hydrocarbon process line cần fire-containment khi event. EPC contractor (Technip, JGC, PECC2) bundle PYROPRESS vào scope cho refinery new build và expansion.
- Hydrocarbon process line fire isolation
- Pressure relief cho cracking unit
- Manifold block multi-valve assembly
- EPC pre-qualification compliance
Nhà Máy Điện — Fuel Delivery
Hệ thống nhiên liệu (fuel oil, gas) cho nhà máy điện cần fire isolation tại tank farm + delivery line. Asset protection cấp độ critical infrastructure.
- Tank farm fire isolation valve
- Fuel oil delivery line block valve
- Boiler fuel inlet fire-safe
- EVN-spec compliance cho thermal plant
LNG & Cryogenic Systems
Hệ LNG -196°C cần fire-rated seat đặc biệt — chịu lạnh cực kỳ và vẫn pass fire test khi event. PYROPRESS có dedicated cryo-line cho LNG terminal Việt Nam.
- LNG terminal block valve
- Cryo-rated seat chịu -196°C
- Fire test cert sau cryo cycle
- Pre-shipment factory test option
Tiêu Chuẩn Life-Safety Fire · Explosion · ATEX
PYROPRESS đạt full bộ chứng nhận quốc tế cho fire protection và hazardous area. Mọi sản phẩm có third-party test certificate kèm.
Tiêu chuẩn API fire test cho quarter-turn valve — yêu cầu pass leakage test sau exposure to fire.
Tương đương ISO cho fire test — chấp nhận quốc tế tại EU và châu Á.
Tiêu chuẩn EU cho valve testing — bắt buộc trong EU + được công nhận tại Vietnam.
Category 3 cho Zone 1/2 hazardous area — bắt buộc cho refinery, chemical plant, O&G platform.
Factory Mutual và Underwriters Laboratories listed — chấp nhận tại các dự án EPC theo US code.
Chứng nhận liên minh hazardous area toàn cầu — đáp ứng yêu cầu Petrovietnam và EPC quốc tế.
Distributor Agreement — Cung Cấp Khi Yêu Cầu
MVT là nhà phân phối chính thức của PYROPRESS UK tại Việt Nam. Full Distributor Agreement ký 07/11/2022 bởi Nguyen Cong Khanh (General Manager). Scope: cung cấp sản phẩm + technical support + warranty management. Đầy đủ fire test certificate đính kèm hàng theo từng lô.
Dự Án Của Bạn Cần Fire-Rated Valve?
Gửi spec hoặc P&ID đến đội kỹ sư MVT — chúng tôi đề xuất model PYROPRESS phù hợp, kèm fire test certificate + ATEX rating + lead time chính xác trong 24-48h.
